Hayward

HeatPro® Low Ambient Heat Pump Stainless Steel 110K BTU

Product #:HAY-15-5027

Mfg. Part #:HP21104TC

  • This product is obsolete.
  • The superceded product was not found.

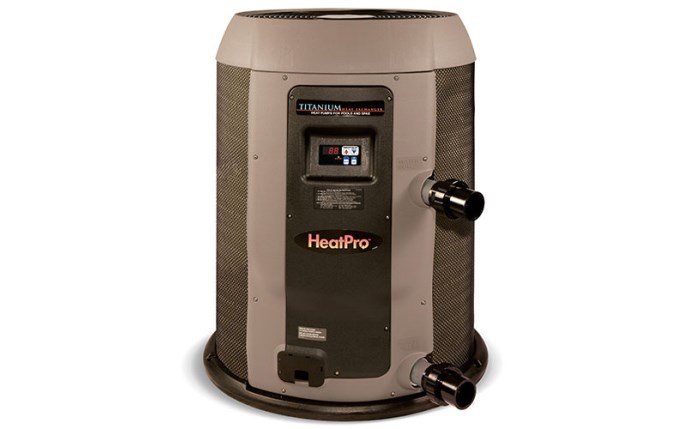

Hayward HeatPro® HP21104TC H-Series Digital Low Ambient Round Heat Pump; 110000 BTU, 230 V, Stainless Steel Housing

Hayward

HeatPro® Low Ambient Heat Pump Stainless Steel 110K BTU

Product #:HAY-15-5027

Mfg. Part #:HP21104TC

Description

Hayward HeatPro® HP21104TC H-Series Digital Low Ambient Round Heat Pump; 110000 BTU, 230 V, Stainless Steel Housing. Don't let cool water temperatures limit your swimming enjoyment. High performance, energy-efficient Hayward® HeatPro® heat pumps quietly and economically maintain your ideal water temperature at all times. They let you start your swim season earlier a

Documents

Feature Bullets

  • Titanium counter-flow heat exchangers for unrivaled and uncompromising performance even under the harshest conditions
  • Ultra gold corrosion-resistant evaporator fin for extreme durability, especially in coastal environments
  • Heavy duty, super quiet scroll compressors
  • Durable injection molded UV-resistant body panels that are impervious to rust and deterioration
  • Stainless steel hardware and polyethylene screen to protect the evaporator coil and maintain peak efficiency
  • Lightweight, compact and easy to install and service, making them ideal for new pools

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationInground, Pool
    • Shipping Dimensions31 x 31.5 x 46.3 inch
    • BTU Output110000
    • Cabinet Depth31.25 inch
    • Cabinet Height40 inch
    • Cabinet Width31.25 inch
    • ChannelNone
    • ColorBrown, Tan
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Control TypeDigital Electric, Dual Thermostat
    • Each Product Weight284 pound
    • Flow Rate Max75 gal/min
    • Flow Rate Min30 gal/min
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Heat Exchanger MaterialStainless Steel
    • Housing MaterialStainless Steel
    • Master Carton Quantity1
    • Min Circuit Ampacity35 amperage
    • Minimum Sell Quantity1
    • Pallet Quantity2
    • PhaseSingle
    • Refrigerant ModelR410A
    • Voltage230V
    • Product Weight284 pound
    • UPC Code0610377186759

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

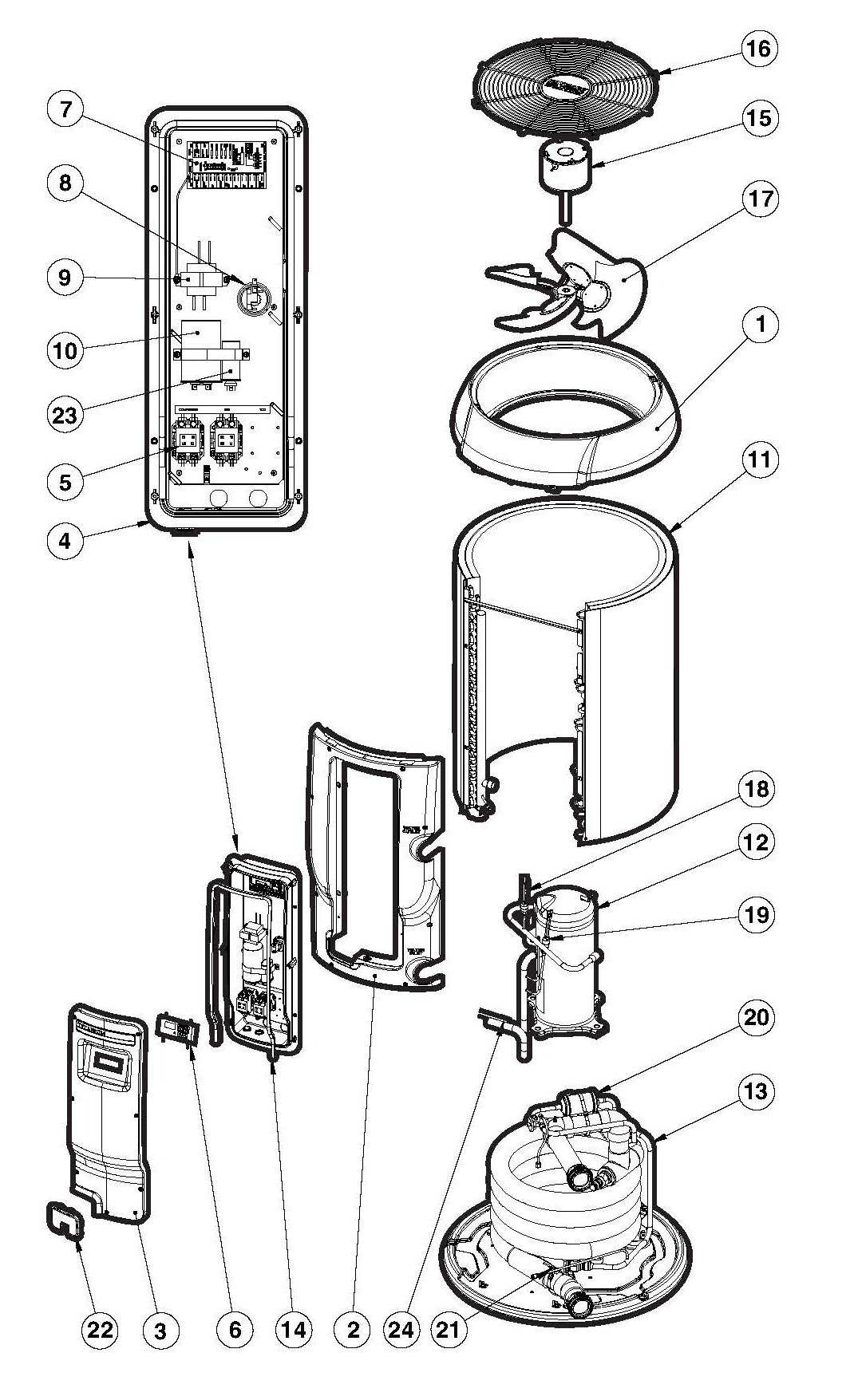

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    HPX01023502
    HAY-151-3299
    HPX01023502 TOP-FAN
    Product #: HAY-151-3299
    Mfg #: HPX01023502
    2
    2
    HPX01023503
    HAY-151-3258
    HPX01023503 PANEL-SIDE
    Product #: HAY-151-3258
    Mfg #: HPX01023503
    3
    3
    HPX01023504
    HAY-151-3265
    HPX01023504 COVER-ELEC BOX
    Product #: HAY-151-3265
    Mfg #: HPX01023504
    4
    4
    HPX01023505
    HAY-151-3305
    HPX01023505 BOX-CONTROL
    Product #: HAY-151-3305
    Mfg #: HPX01023505
    5
    5
    HPX1985
    HAY-151-5019
    Heat Pro Contractor
    Product #: HAY-151-5019
    Mfg #: HPX1985
    6
    6
    HPX26024139
    HAY-151-5039
    HeatPro Control Board Assembly 2
    Product #: HAY-151-5039
    Mfg #: HPX26024139
    7
    7
    HPX11024130
    HAY-151-5029
    HeatPro Interface Board
    Product #: HAY-151-5029
    Mfg #: HPX11024130
    8
    8
    HPX2181
    HAY-151-5013
    Heat Pro Water Flow Pressure Switch
    Product #: HAY-151-5013
    Mfg #: HPX2181
    9
    9
    HPX11023693
    HAY-151-5024
    Heat Pro Transformer
    Product #: HAY-151-5024
    Mfg #: HPX11023693
    10
    10
    HPX11024270
    HAY-151-5070
    HeatPro Capacitor 45uF 370V
    Product #: HAY-151-5070
    Mfg #: HPX11024270
    10
    10
    HPX11024272
    HAY-151-3238
    HP20854T HeatPro Capacitor 370VAC 70uF
    Product #: HAY-151-3238
    Mfg #: HPX11024272
    10
    10
    HPX11024743
    Capacitor for HP21104T
    Product #:
    Mfg #: HPX11024743
    11
    11
    HPX24024238
    HAY-151-3433
    HPX24024238 BENT COIL W/GUARD 1 SLAB
    Product #: HAY-151-3433
    Mfg #: HPX24024238
    11
    11
    HPX24024241
    HAY-151-7000
    HPX24024241 HEATPRO HEAT PUMP 2 SLAB BENT COIL W/ GUARD
    Product #: HAY-151-7000
    Mfg #: HPX24024241
    12
    12
    HPX11024257
    HAY-151-3432
    HPX11024257 COMPRESSOR-ZP36K5E-PFV
    Product #: HAY-151-3432
    Mfg #: HPX11024257
